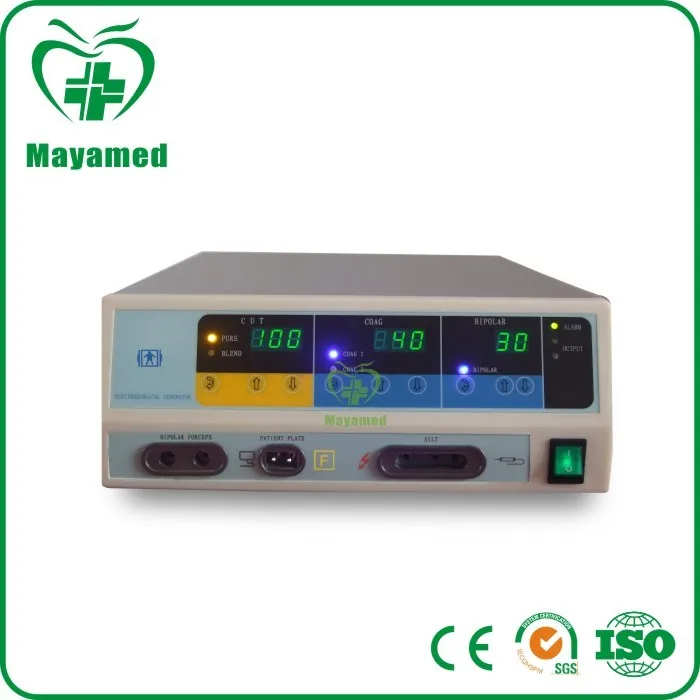

MY-I044 portable medical Five working modes electrosurgical unit High frequency Surgical Electrosurgical Generator

FOB Reference Price:Get Latest Price
$1,560.00 - $1,700.00 / Sets | 1 Set/Sets diathemy machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
MAYA
Model Number:
MY-I044
Properties:
The Basis of Surgical Instruments
Type:
Knife
Product name:
Electrosurgical Generator
working mode:
Five working modes
control:
Microcomputer control
panel:
Touch control panel
Operating frequency:
360~460kHz
alarm:
stop the output and sound alarm
output:
three way power output,
mode:
Both monopolar and bipolar
type:
portable
feature:
high frequency electrosurgical generator
Supply Ability
Supply Ability:
500 Set/Sets per Month diathemy machine
Packaging & Delivery
Packaging Details
carton per high frequency Electrosurgical Generator
Port
huangpu
Lead Time :
Shipped in 10 days after payment
MY-I044 portable medical Five working modes electrosurgical unit High frequency Surgical Electrosurgical Generator

Product Description



(Five working modes)



Features

Microcomputer control.

Both monopolar and bipolar. Monopolar can be controlled by hand or foot. Bipolar can be controlled by foot only.

Precise power control, can be used for all general surgical procedures.

Touch control panel, three way power output, with different audible and visual indication during the process of outputting.

Automatic performance check during startup and Polar plate test.

Full floating output system protects patient from tissue damage caused by low frequency current.

REM contact quality monitoring system which substantially reduces the risk of burns under the

patient return electrode. When patient plate and skin are not well contacted, the system will automatically

stop the output and sound alarm.



Technical Specifications

Power: 220V±22V(110V±11V), 50Hz±1Hz,              Operating frequency: 360~460kHz

Power rating: 1100VA±10%



Five working modes:

Monopolar Cut

a) pure cut:1W~300W( Load 500Ω)             b) Blend:1W~200W(Load 500Ω)

Monopolar Coag

c)Coag1( Spray Coag):1W~150W( Load 500Ω)     d) Coag2(Soft Coag):1W~120W( Load 500Ω)

 bipolar coag:1W~50W(70W)( Load 100Ω)

Power Consumption : <=1100VA(Cutting function 300W)



Five working modes:

Monopolar Cut

a) pure cut:1W~300W( Load 500Ω),apply to the operation of any tissue.

b) Blend:1W~200W(Load 500Ω),apply to the surgery of any tissue, proving a good coagulation effect while cutting.

Monopolar Coag

c) Coagulation1(spray Coag):1W~150W( Load 500Ω), apply to ordinary open surgery, deep tissue coagulation layer, has excellent homeostasis effect.

d) Coagulation2(Soft Coag):1W~120W( Load 500Ω) ,suitable for endoscopic and other fine tissue surgery with fast contact coagulation.

Bipolar

e) Bipolar coagulation: 1W~50W ( Load 100Ω), when tissue reach a good coagulation effect,

output power slow down, making a good homeostasis effect.

Power Consumption: <=1100VA (Cutting function 300W, Bipolar coagulation function 50W output).

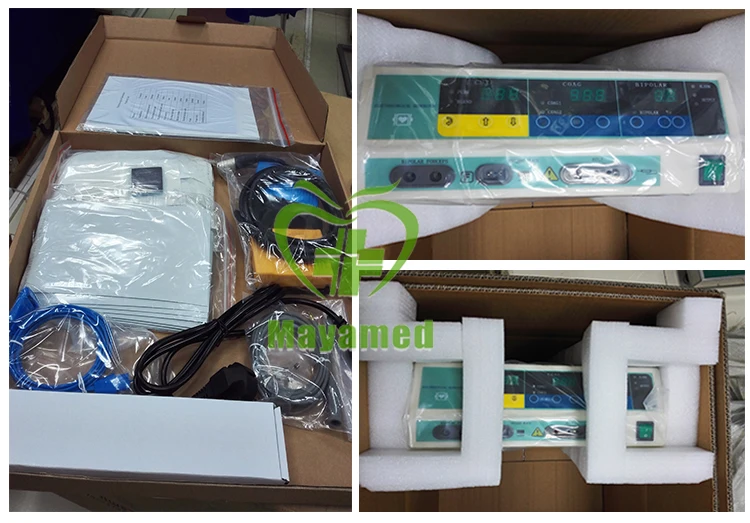

Packing list

Name

Quantity

Mainframe

1set

Electrosurgical pencil

5pieces

Electrosurgical pad

10 pieces

Electrosurgical pad cable

1piece

Foot switch

1set

Tip clean sponge

1piece

Bipolar forceps with cable

1set

Fuse

3pieces

Power cord

1piece

Operating manual

1book



Demension: G.W. 13kg     Size: 59*49*34cm
