High frequency 20KW/50KW medical x ray radiography diagnostic equipment HF X-Ray Machine Price

FOB Reference Price:Get Latest Price
$8,400.00 - $10,300.00 / Set | 1 Set/Sets (Min. Order)
Customized logo (Min. Order: 1000 Sets)
Report Suspicious Activity
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Model Number:
Medical X-ray Equipments & Accessories
Instrument classification:
Class II
Product name:
Medical HF X-Ray Machine
X-ray machine maximum output power:
Intermittent mode 100kV ,500mA,50kW
Range of x-ray tube current:
Range of x-ray tube voltage:
Exposure time:
Nominal working frequency:
Power supply:
Three-phase five wires 380V±38V
Vertical moving range:
Horizontal moving range:
Supply Ability
Supply Ability:
230 Set/Sets per Month Medical X-Ray Machine
Packaging & Delivery
Packaging Details
Carton box+Wooden box,Standard export packing for Medical X-Ray Machine
Product Description

 High frequency 20KW/50KW medical x ray radiography diagnostic equipment HF X-Ray Machine Price

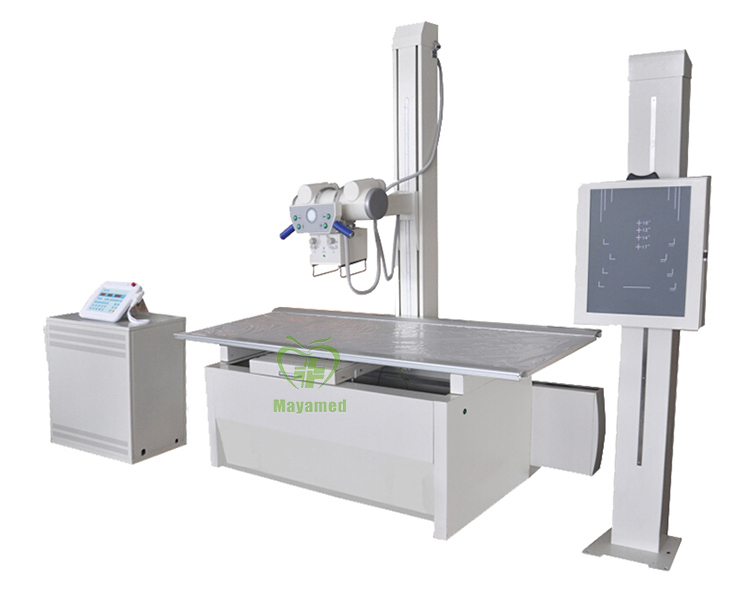

medical x-ray machine-0.jpg

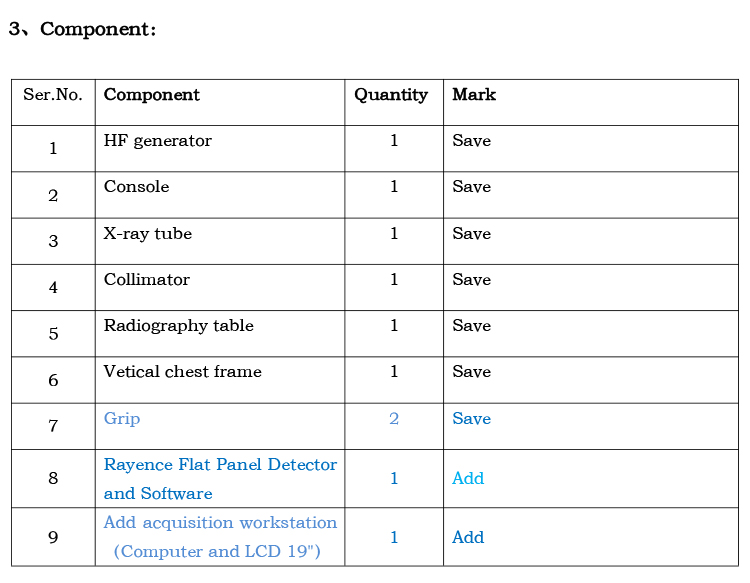

Product Configuration:
1.X-ray tube 2.Collimator 3. Radiographic table 4.High voltage generator
5.Micro console 6.High voltage cable 7.Double Grid 8.Vertical bucky stand


1. Main Technical Parameters
(1)Function: Radiography
(2)X-ray machine maximum output power:
Intermittent mode 100kV ,500mA,50kW
(3)Range of x-ray tube current:16mA~630mA
Range of x-ray tube voltage:40kV~125kV
(4)Exposure time: 0.0025s~6.3s
(5)Nominal working frequency≥30kHz
(6)Power supply: Three-phase five wires 380V±38V


2. Main configuration
(1)High frequency high voltage generator
(including control console)
(2)X-ray tube
Focus :small focus:1.0mm large focus:2.0mm
Anode speed: 2800r/min
Anode thermal capacity: 140KHU
(3)Collimator power supply: ac 24V
(4)Radiography bed
a. Single phase 220V±22V,50Hz±1Hz
b. X-ray components supporting frame


Braking mode: Electromagnetic brake, braking force ≥98 N, button operation
Filter: N40.r10.f0=180cm, stationary type,
size: 5″×7″ 8″×10″ 10″×12″ 11″×14″ 14″×17″
C.Size: L2000mm×W760mm×H685mm
Vertical moving range: ≥825mm

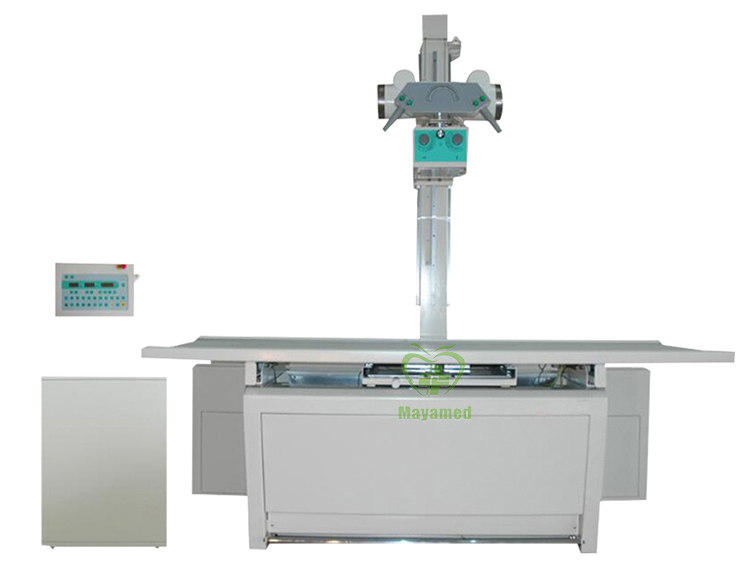

Horizontal moving range: ≥250mmmedical x-ray machine-1.jpg


Company Information
Our Services

Our services:

1. For all your inquires about us or our Medical X-Ray Machine, we will reply you in detail within 24 hours.
2. We own professional team have professional attitude to recommend products and services, introducing the Medical X-Ray Machine for you.
3. Our Medical X-Ray Machine have various type and function,We will recommend to you that according to your requirements;We offer OEM services; Can print your own logo on the Medical X-Ray Machine.
4. Our Medical X-Ray Machine have one year free warranty, and it is still providing after-sales service.
5. We have very experienced engineers, can help you better use our Medical X-Ray Machine.


Your satisfaction is our duty! It will be our great honor to serve you. We do hope we can offer you more help in medical field and build the long term business relationship with you.


1.How to buy your products ?Do you have distributor in our country?

You can buy the products from our company directly.Normally the procedure is:Sign the contact ,payment  byT/T, contact the shipping company to delivery the goods to your country.

2. What is the warranty?

The free warranty is one year from the day of Commissioning qualified.

3.Can we visit your country ?

Of course,we will prepare for everything in advance if it is necessary .Generally,it is require that customers must have build agency relationship or business relationship with our company.

4.How long is the validity of quotation?

Generally,our price is valid within one month from the date of quotation .The price will be adjusted appropriately according to the price fluctuation of raw material and changes in market .

5.Do you have the CE certificate ?

Yes, most of our products have the CE certificate.

Packaging & Shipping


Delivery detail:
1.We ship the Medical X-Ray Machine by air or sea for you.
2.Our Medical X-Ray Machine with standard export packing.
3.No matter what delivery way , all depending on your actual requirements.
